Shear Beam

  • Shear beam load cells in aluminum, steel and stainless steel. A universal load cell for bigger industrial applications.

    The shear is measured close to the neutral line of the load cell, what reduces the effects of transverse forces. Torque however influences the measuring result. The compact construction easies mounting. Complete platforms including load cells are available as well.

  • ALLOY STEEL

    Product Name

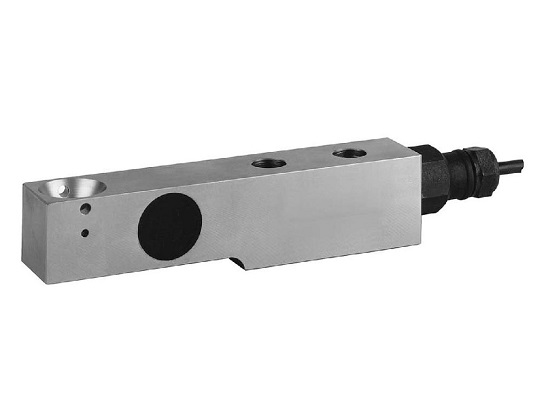

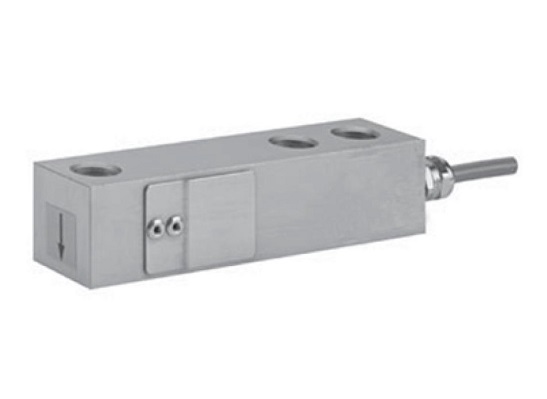

    Type 3410

    Ideal for multiple load cells, platforms and general purpose.

    • 250 kg - 2000 kg range
    • accuracy class up to C3
    • protection class IP67

    Download Leaflet

    ALLOY STEEL  STAINLESS STEEL

    Product Name

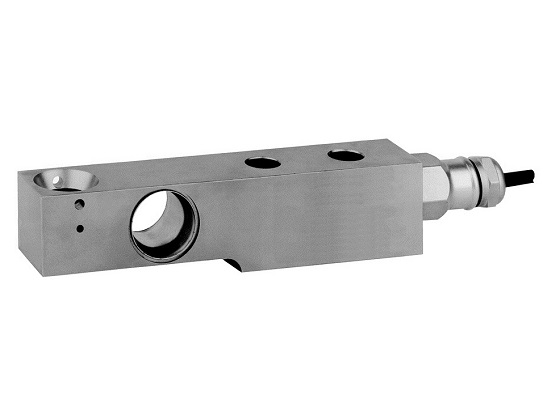

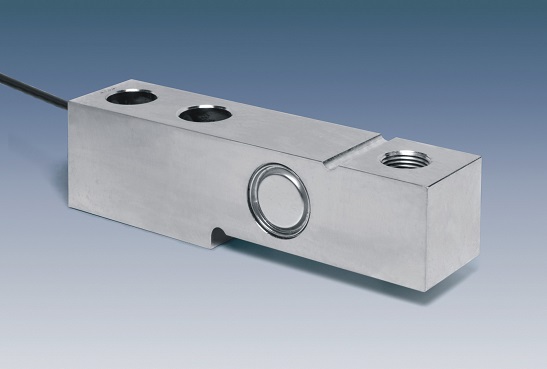

    Type 350n/350a/350i

    Ideal for multiple load cells, platforms and general purpose applications.

    • 300 - 5000 kg range; 350n max 2000 kg
    • accuracy class C3
    • protection class IP66/IP66/IP68

    Download Leaflet

    STAINLESS STEEL

    Product Name

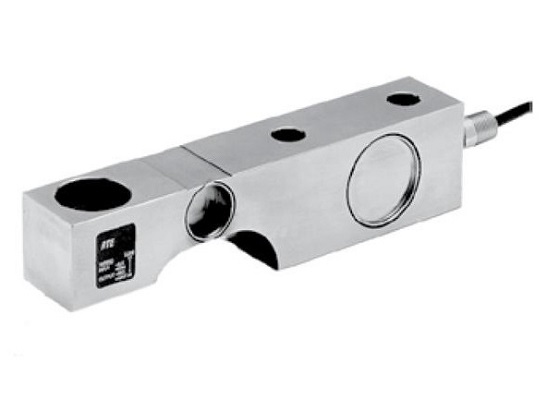

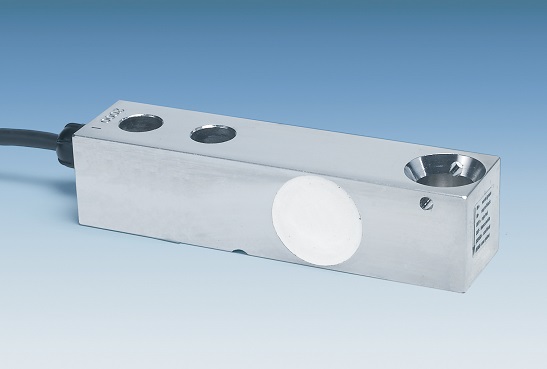

    Type SB2

    Ideal for multiple load cells, heavy duty and general purpose.

    • hygienic
    • 20400 – 45400 kg range
    • accuracy class up to C3
    • protection class IP68

    Download Leaflet

    ALUMINUM

    Product Name

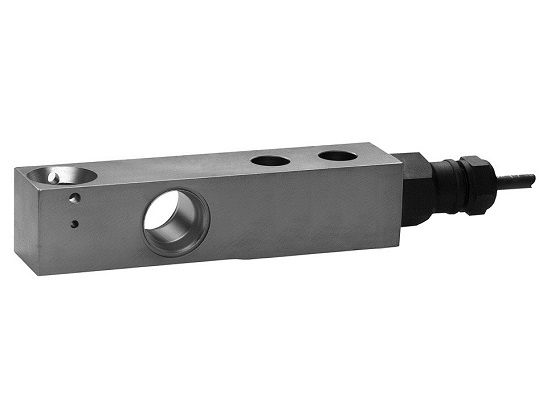

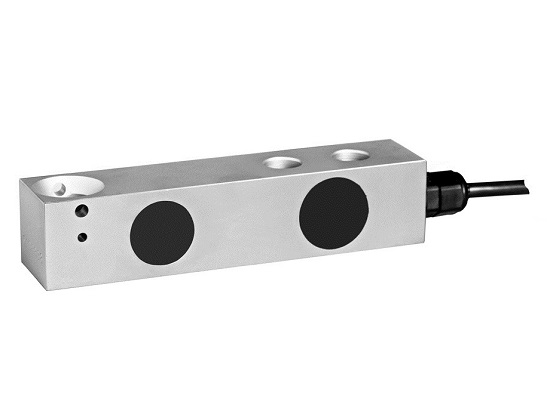

    Type 3310

    Ideal for multiple load cells, platforms and general purpose applications.

    • 250 - 1000 kg range
    • accuracy class upto C3
    • protection class IP67

    Download Leaflet

    STAINLESS STEEL

    Product Name

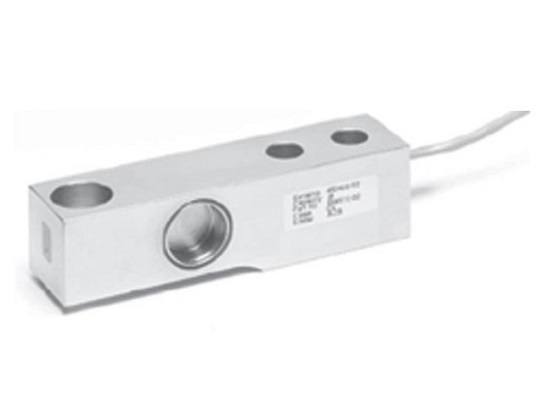

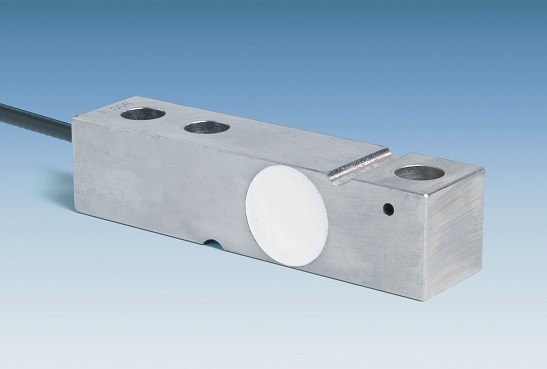

    Type 3411

    Ideal for multiple load cells, platforms and general purpose applications.

    • 250 - 2000 kg range
    • accuracy class up to C3
    • protection class IP67

    Download Leaflet

     ↑ Back to top

    STAINLESS STEEL

    Product Name

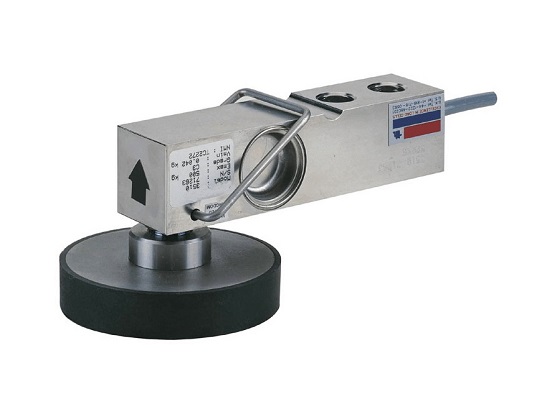

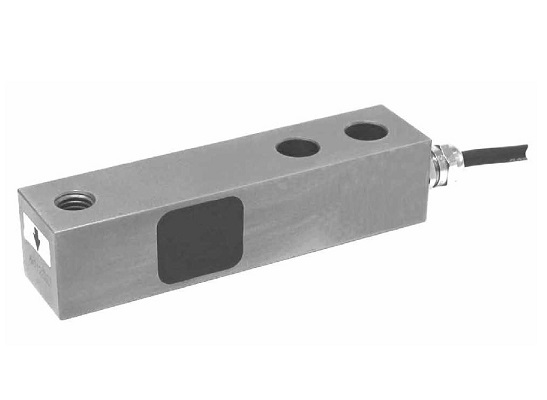

    Type 3510

    Ideal for multiple load cells, platforms and general purpose.

    • hygienic
    • 300 - 5000 kg range
    • accuracy class up to C6
    • protection class IP68

    Download Leaflet

     ↑ Back to top

    STAINLESS STEEL

    Product Name

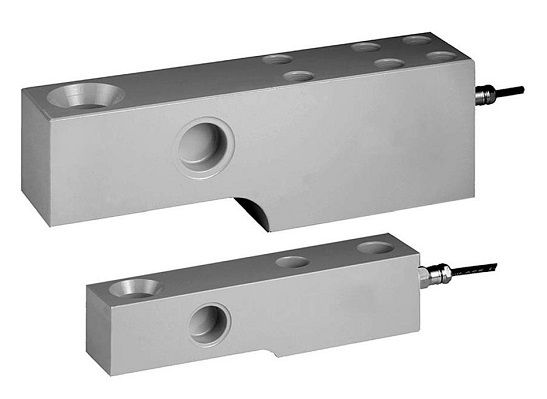

    Type 350a/350i T-end

    Ideal for multiple load cells, platforms and general purpose applications.

    • 300 - 2000 kg range
    • accuracy class C3
    • protection class IP66/IP68

    Download Leaflet

     ↑ Back to top

    STAINLESS STEEL
    Product Name

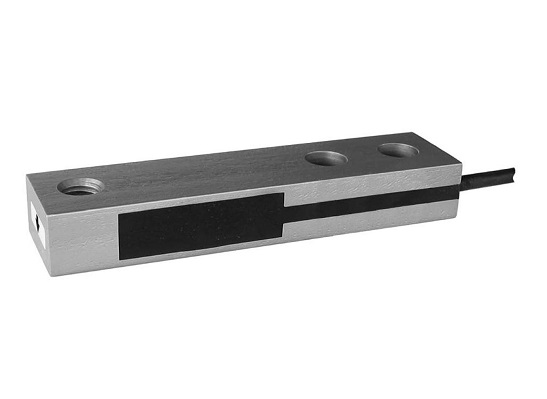

    Type 350i

    Ideal for multiple load cells, platforms and  general purpose applications.

    • hygienic
    • 7500 - 10 000 kg range
    • accuracy class C3
    • protection class IP68

    Download Leaflet

     ↑ Back to top

    STAINLESS STEEL

    Product Name

    Type ACB

    Ideal for multiple  load cells, heavy duty and  general purpose applications.

    • hygienic
    • 500 - 5000 kg range
    • accuracy class upto C6
    • protection class IP66 and IP68

    Download Leaflet

     ↑ Back to top

    STAINLESS STEEL
    Product Name

    Type BK2

    Ideal for multiple load cells, platforms and general purpose.

    • 200 - 2000 kg range
    • accuracy class up to C3
    • protection class IP67

    Download Leaflet

     ↑ Back to top

    STAINLESS STEEL

    Product Name

    Type SB14

    Ideal for multiple  load cells, heavy duty and  general purpose applications.

    • hygienic
    • 227 - 4536 kg range
    • accuracy class up to C3
    • protection class IP68

    Download Leaflet

     ↑ Back to top

    STAINLESS STEEL

    Product Name

    Type SB4

    Ideal for multiple load cells, platforms and general purpose.

    • hygienic
    • 510 – 10197 kg range
    • accuracy class up to C4
    • protection class IP68

    Download Leaflet

     ↑ Back to top

    STAINLESS STEEL

    Product Name

    Type SB5

    Ideal for multiple load cells, platforms and general purpose.

    • hygienic
    • 510 - 10197 kg range
    • accuracy class up to C3
    • protection class IP67

    Download Leaflet

     ↑ Back to top

    STAINLESS STEEL

    Product Name

    Type SB9

    Ideal for multiple load cells, platforms and general purpose applications.

    • 250 - 2000 kg range
    • accuracy range up to C3
    • protection class IP67

    Download Leaflet

     ↑ Back to top

    STAINLESS STEEL

    Product Name

    Type SLB

    Ideal for multiple load cells, platforms and general purpose applications.

    • 500 - 5000 kg range
    • accuracy range up to C3
    • protection class IP67

    Download Leaflet

     ↑ Back to top

    STAINLESS STEEL

    Product Name

    Type SSB

    Ideal for multiple  load cells, heavy duty and  general purpose applications.

    • 500 - 10.000 kg range
    • accuracy range uo to C4
    • protection class IP66 and IP68

    Download Leaflet
