Hydraulically-Damped

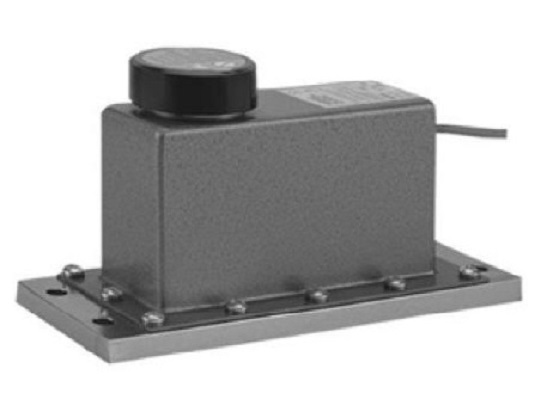

Type 240

Ideal for platforms up to 400 x 400 mm in various dynamic applications, such as filling, check weighing and grading.

• 2 - 50 kg range
• accuracy class up to C3
• protection class IP66

Download Leaflet

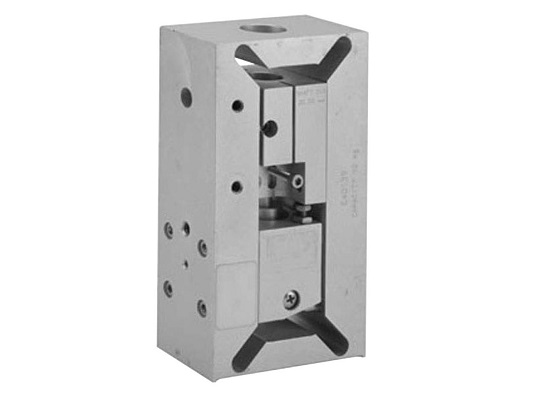

Type 1410

A single point load cell, especially designed for multi-head rotating filling machines. The load cell possesses a unique compensation of centrifugal forces, is insensitive for side forces and has a, application adjustable, hydraulic damping.

• 10 -30 kg range
• accuracy class up to  G(tot 3000 d)


    Download Leaflet

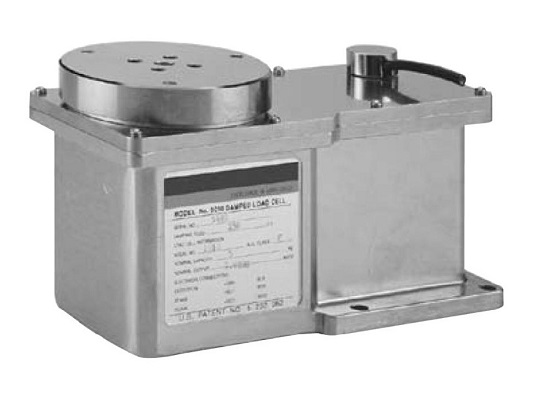

Type 9010

A single point load cell with a unique compensation for high dead loads, overloads and eccentric loads. Together with the hydraulic damping this load cell is the ideal solution for fast and dynamic processes including shock-loading applications

• 3 kg - 90 kg range
• accuracy class up to  G(uo to 3000 d)
• protection class IP65

Download Leaflet

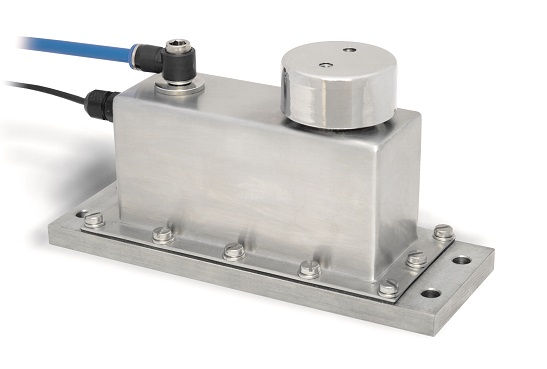

Type 260

Ideal for platforms up to 500 x 500 mm in various dynamic applications, such as filling, check weighing and grading.

• 5 kg - 200kg range
• accuracy class up to C4
• protection class IP68

Download Leaflet

Type 240

Ideal for platforms up to 400 x 400 mm in various dynamic applications, such as filling, check weighing and grading.

• 2 - 50 kg range
• accuracy class up to C3
• protection class IP66

Download Leaflet

 _{↑ Back to top}

Type 9010

A single point load cell with a unique compensation for high dead loads, overloads and eccentric loads. Together with the hydraulic damping this load cell is the ideal solution for fast and dynamic processes including shock-loading applications

• 3 kg - 90 kg range
• accuracy class up to G(up to 3000 d)
• protection class IP65

Download Leaflet
