Mounting Assemblies

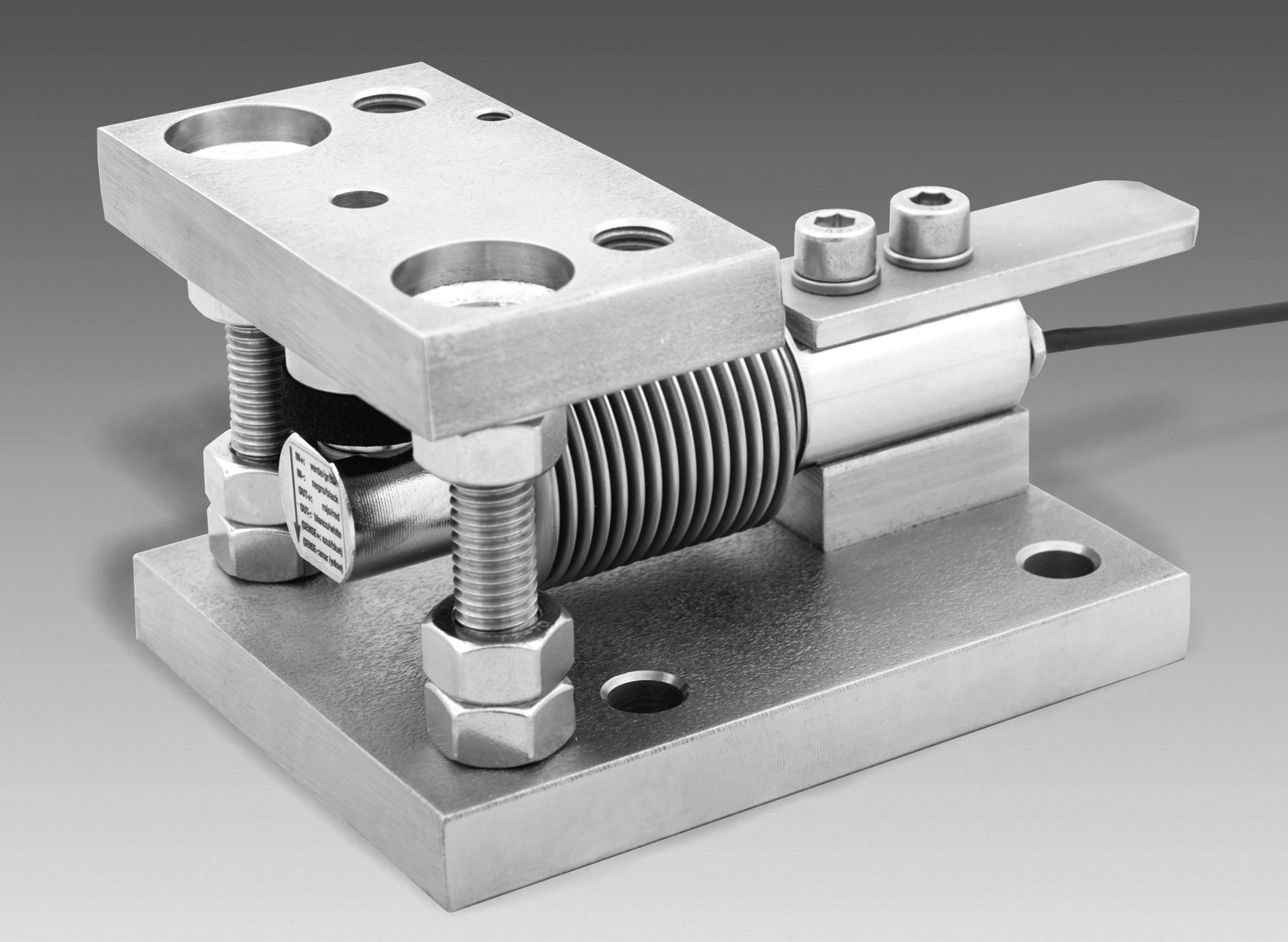

Type 30907

• assembly with integrated jacking facility
• lift off protection
• high accuracy through spherical or ball and cup loading arrangement

• for types , 300i, 355, SB6 and SB8
• range up to 500 kg

 _{↑ Back to top}

Type Silo Mount

• loading assembly
• integrated jacking facility
• high accuracy double roller loading assembly
• suitable for load cell type 220
• range up to 10 and 30 t

Download Leaflet

 _{↑ Back to top}

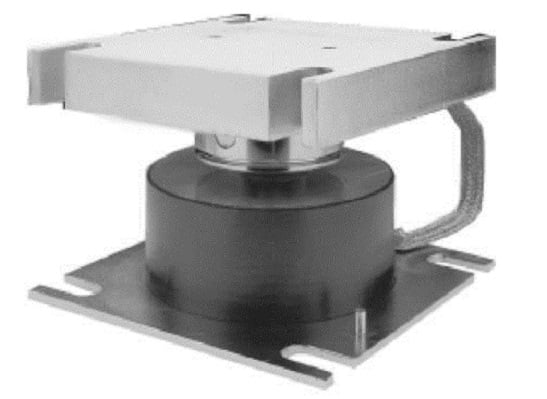

Type Weighbridge Mount

• silent block loading assembly
• absorbs thermal expansion
• load introduction
• mounting plate
• conductors, locknuts and washers
• suitable for load cell type 220
• range up to 5, 10, 30 and 50 t

Download Leaflet

 _{↑ Back to top}

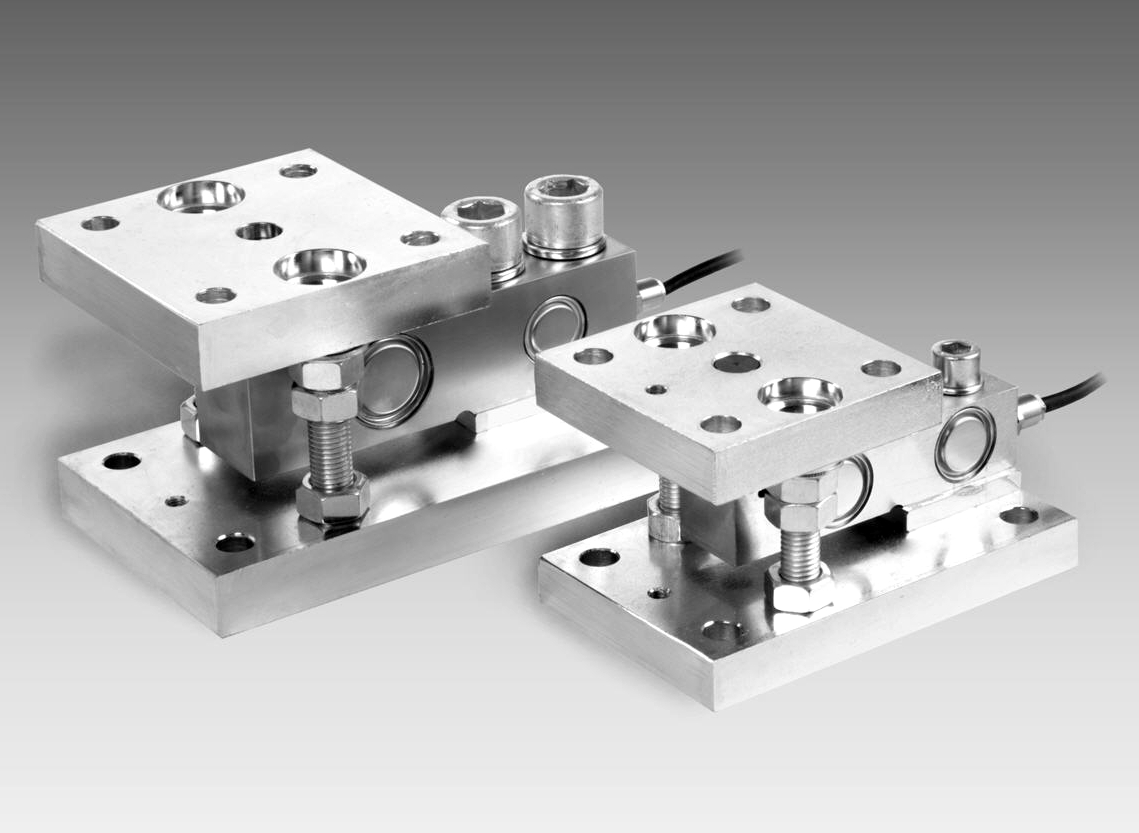

Type width: 35902 and 35903

• assembly with integrated jacking facility
• high accuracy through spherical or ball and cup loading arrangement
• lift off protection
• for type 350, 3410, 3510 and SB4 load cells
• range up to 2000 and 5000 kg

Download Leaflet

 _{↑ Back to top}

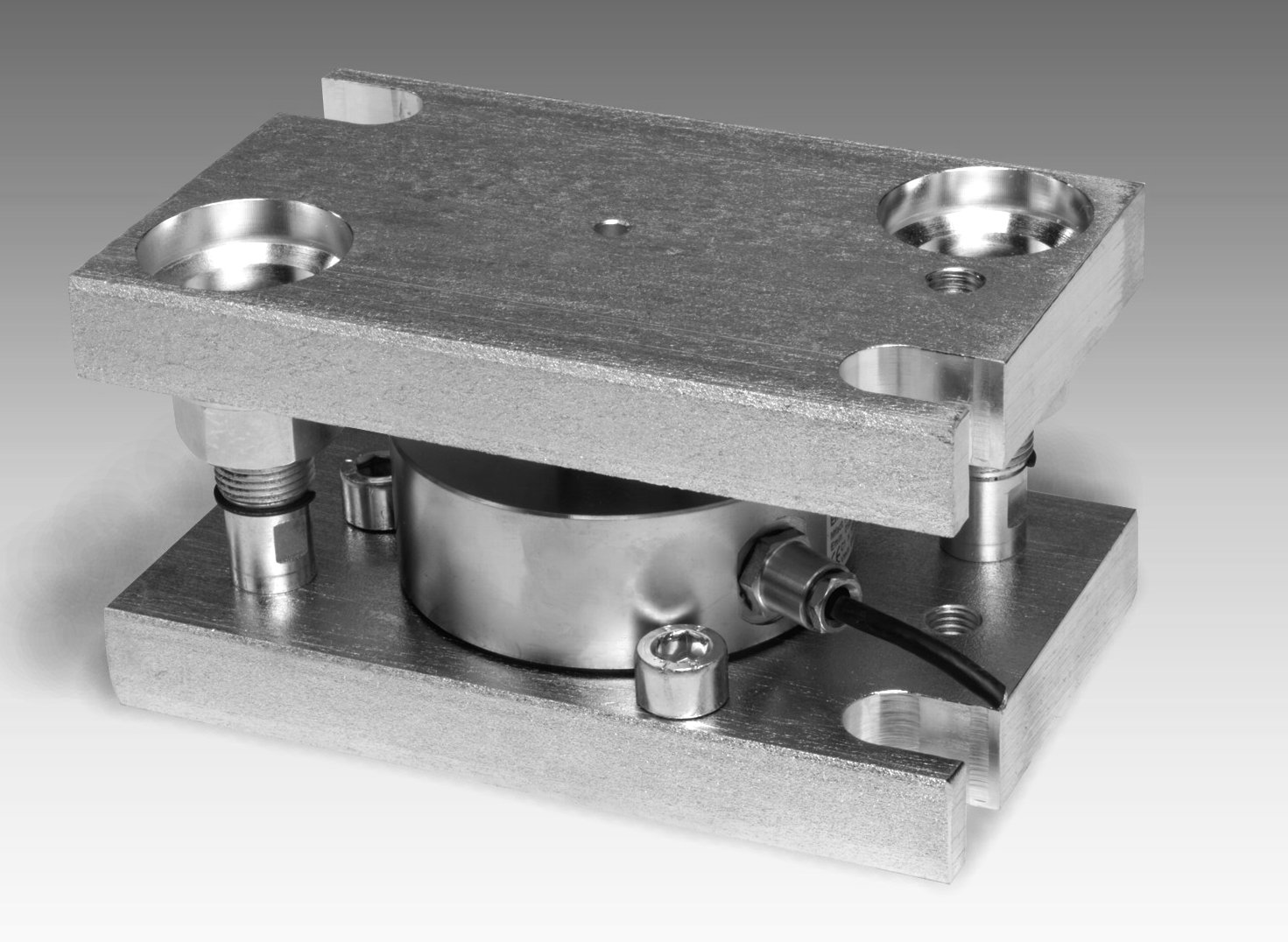

Type 42901-42902

• assembly with integrated jacking facility
• lift off protection
• equipped with load introduction
• suitable for load cell type 420
• range up to 10 and 30 t

Download Leaflet

 _{↑ Back to top}

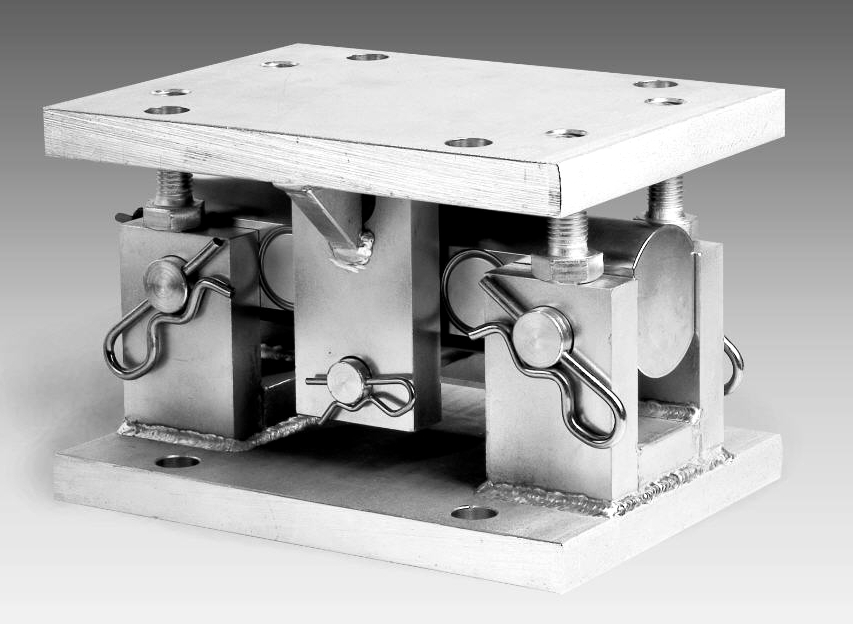

Type 46901, 46902 and 46903

• assembly with integrated jacking facility
• lift off protection
• high accuracy through loading arrangement
• suitable for load cell type 460
• range up to 20 t, 50 t and 100 t

Download Leaflet

 _{↑ Back to top}

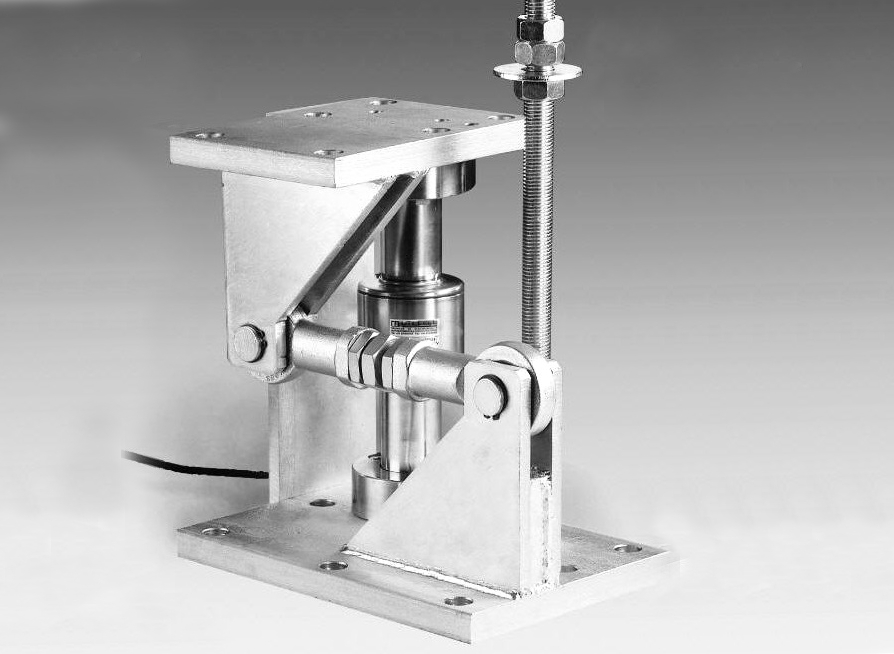

Type 74907

• for self-aligning load cells, prevents for unwanted forces affecting load cell performance
• integrated lift off protection
• suitable for type 740
• range up to 40 t

Download Leaflet

 _{↑ Back to top}

Type 74908

• for self-aligning load cells prevents unwanted forces affecting load cell performance
• integrated lift off
• suitable for type 740
• range up to 60 T

Download Leaflet

 _{↑ Back to top}

Type 74909

• for self-aligning load cells protection prevents unwanted forces affecting load cell performance
• integrated lift off protection
• suitable for type 740
• range up to 200 t

Download Leaflet

 _{↑ Back to top}

Type 74910

• for self-aligning load cells prevents unwanted forces affecting load cell performance
• integrated lift off protection
• suitable for type 740 load cells
• range up to  400 t

Download Leaflet

 _{↑ Back to top}

Type 74914

• for self-aligning load cells prevents unwanted forces affecting load cell performance
• integrated lift off protection
• suitable for type 740 load cells
• range up to  600 t

Download Leaflet

 _{↑ Back to top}

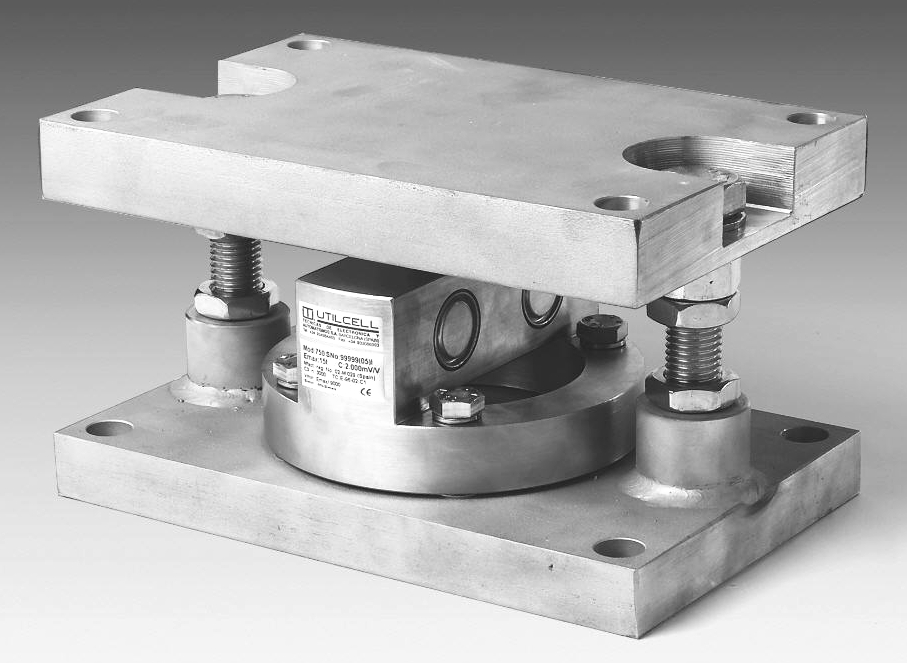

Type 75906

• integrated jacking facility
• lift off protection

• spherical loading arrangement
• suitable for load cells type 750
• range up to 30000 kg

Download Leaflet

 _{↑ Back to top}

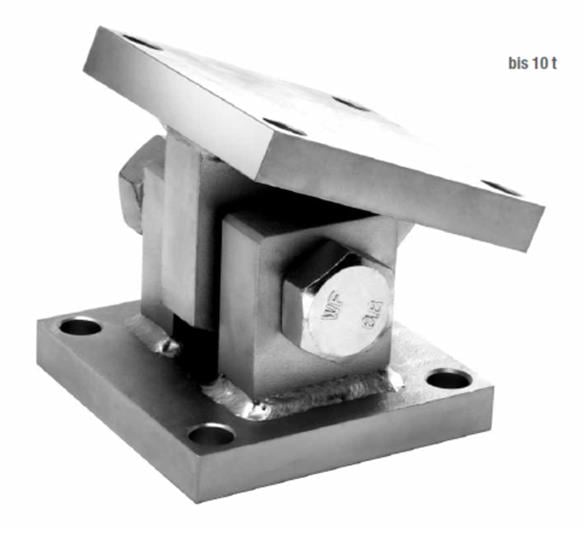

Type 56-01

• dummy support replacing a load cell land assembly under a tank of liquids
• replacing types 350, 3410, 3510, SB4,SB5, SB14 with assembly 52-18
• range up to 2000 , 5000  an 10 000 kg

Download Leaflet

_{↑ Back to top}

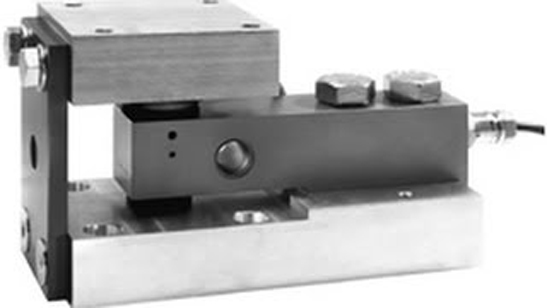

Type 52-18

• with rocker pin or sliding arrangement
• prevents unwanted influences
• for types 350, 3410, 3510, SB4, SB5 and SB14
• range up to 2000 , 5000  an 10 000 kg

Download Leaflet

 _{↑ Back to top}

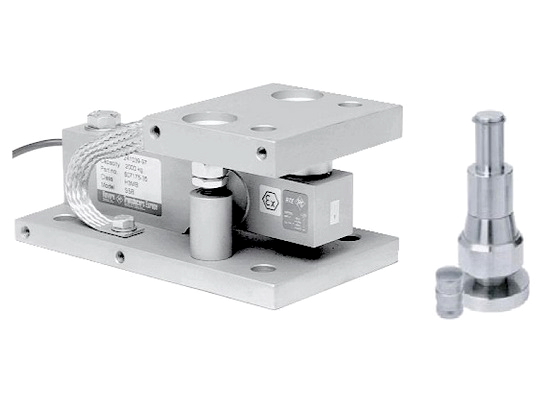

Type SSB Mount

• integrated jacking facility
• rocker pin load introduction
• lift off protection
• suitable for load cell type SBC
• range up to 2000 and 5000 kg

Download Leaflet

 _{↑ Back to top}

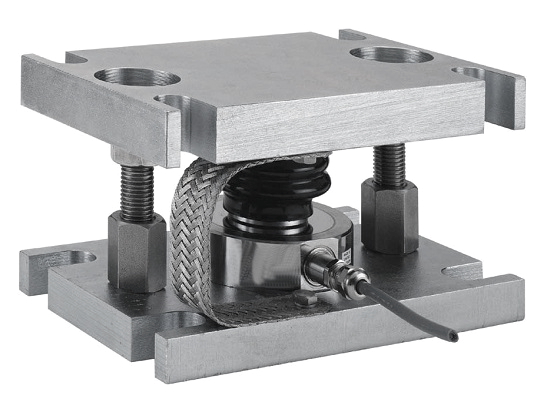

Type 220 Silo Mount

• lift off protection
• integrated jacking facility
• high accuracy double roller loading assembly
• suitable for load cell type 220
• range up to 10 000 and 30 000 kg

Download Leaflet

 _{↑ Back to top}

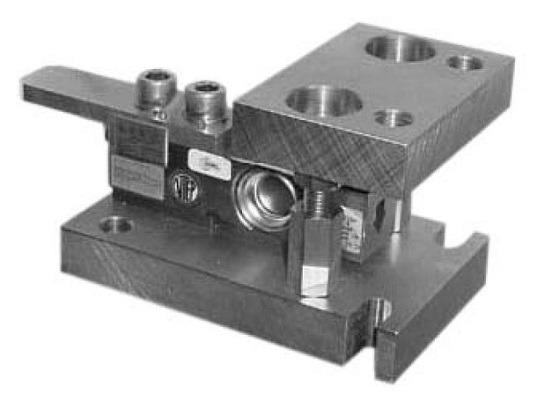

Type CellMate

•  integrated jacking facility
• high accuracy ball and cup loading arrangement
• loft off protection
• for type 300i, 350 , 355,  3410, 3510 , SB6, SB8 and SB4
• range up to 200, 2000 and 5000 kg

Download Leaflet

 _{↑ Back to top}

Type RLC Mount

• integrated jacking facility
• lift off protection
• horizontal limitation
• high accuracy rocker pin arrangement

• suitable for load cells type RLC
• range up to 1000, 5000 and 10 000 kg

Download Leaflet

 _{↑ Back to top}

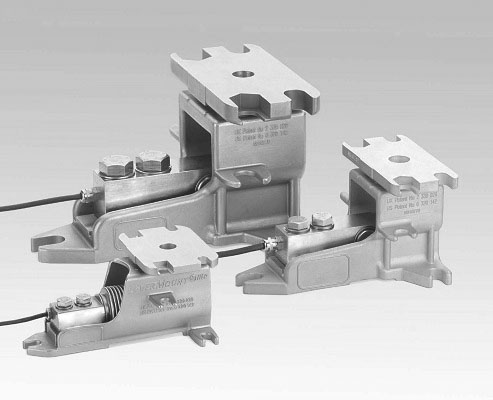

Type LEVERMOUNT

• integrated lever jacking facility
• high accuracy ball and cup loading arrangement
• suitable for load cell for type 300i, 350 , 355,  3410, 3510 , SB6, SB8 and SB4
• range up to 200, 2000 and 5000 kg

Download Leaflet
