Tension-S Beam

  • Tension load cells in aluminium, steel and stainless steel.
    A universal load cell for almost any size of industrial applications with a hanging constructions. The essential part consists of an element measuring the bending or shear, depending on the capacity. A S-shaped body with  suspension connections is located arround the measuring element. Since generallyrod ends with swivel bearings are used, the load cell will adjust itself to the load prevents transverse forces and torque.


  • ALLOY STEEL
    Product Name

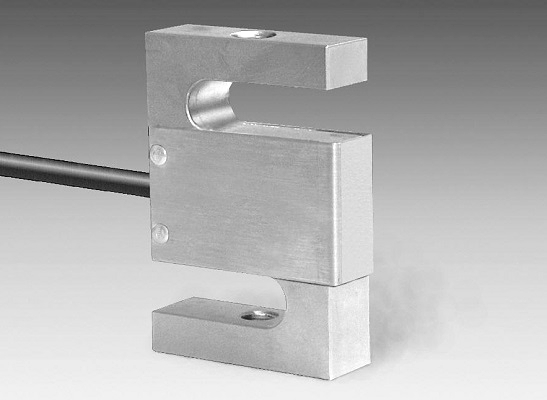

    Type 610

    Ideally suited for hanging scales, force measurement, as safety device for hoists and other industrial applications.

    • 50 - 500 kg range
    • accuracy class C3
    • protection class IP66

    Download Leaflet


    ALUMINIUM
    Product Name

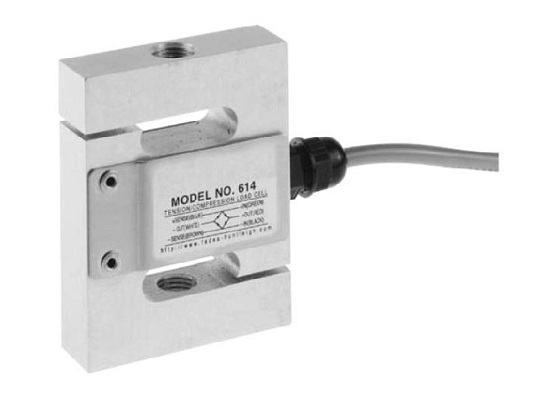

    Type 614

    Ideally suited for lever conversions, hanging scales, force measurement and a wide range of other industrial applications.

    • 50 – 500 kg range
    • accuracy class up to C3
    • protection class IP67

    Download Leaflet


    ALLOY STEEL
    Product Name

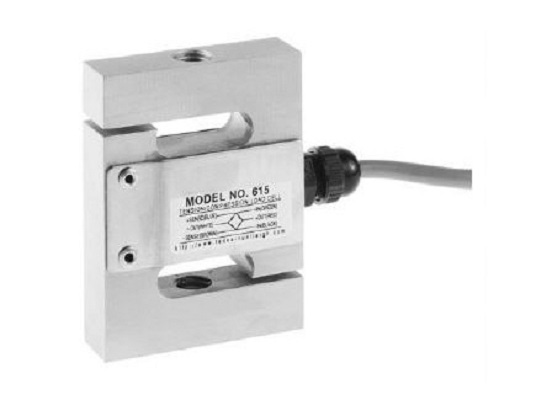

    Type 615

    Ideally suited for lever conversions, hanging scales, force measurement and a wide range of other industrial applications.

    • 50 – 1000 kg range
    • accuracy class up to g
    • protection class IP67

    Download Leaflet


    ALLOY STEEL
    Product Name

    Type 619

    Ideally suited for hanging scales, force measurement, as safety device for hoists and other industrial applications.

    • 1500 - 6000 kg range
    • accuracy class up to G
    • protection class IP67

    Download Leaflet


    STAINLESS STEEL
    Product Name

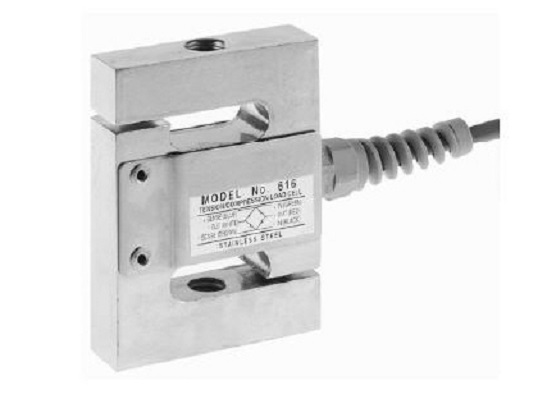

    Type 616

    Ideally suited for lever conversions, hanging scales, force measurement and a wide range of other industrial applications.

    • 100 – 1000 kg range
    • accuracy class up to G
    • protection class IP67

    Download Leaflet

     ↑ Back to top


    STAINLESS STEEL
    Product Name

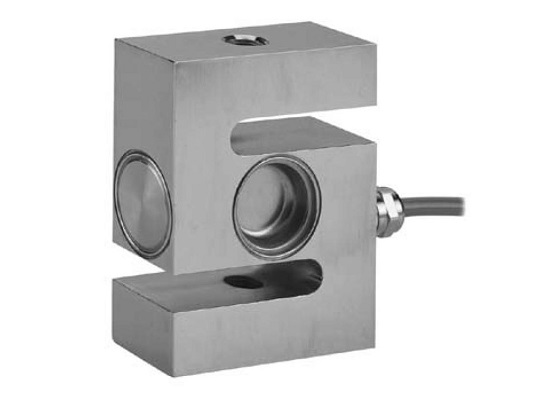

    Type 620

    Applications in harsh environments include hybrid scales, hopper weighing, belt weighers, dynamometers, material testing machines, vibratory feeding equipment.

    • 500 – 5000 kg range
    • accuracy class up to C3
    • protection class IP68

    Download Leaflet

     ↑ Back to top


    STAINLESS STEEL
    Product Name

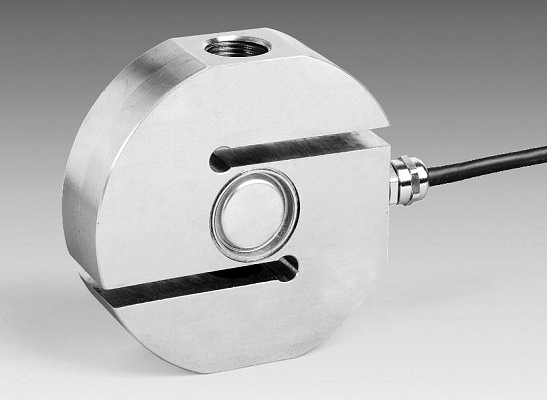

    Type 650

    Ideal for hybrid constructions, hanging scales, force measuring and a variety of hygienic applications.

    • 250 - 7500 kg range
    • accuracy class C3
    • protection class IP68

    Download Leaflet

     ↑ Back to top


    STAINLESS STEEL
    Product Name

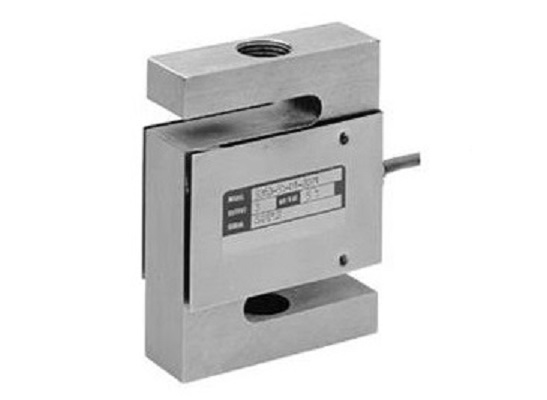

    Type 9363

    Ideal for suspended hoppers, overhead track scales, force measurements, belt scales and also process weighing applications.

    • 50 - 10000 kg range
    • accuracy class up to C3
    • protection class IP67

    Download Leaflet

     ↑ Back to top


    STAINLESS STEEL
    Product Name

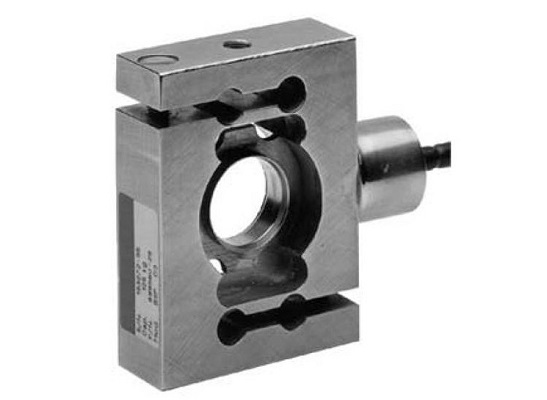

    Type BSP

    Ideal for hybrid scales, process weighing,belt checkweighers, dynamometers.

    • 50 - 5000 kg range
    • accuracy class up to C3
    • protection class IP66 and IP68

    Download Leaflet

     ↑ Back to top


    STAINLESS STEEL
    Product Name

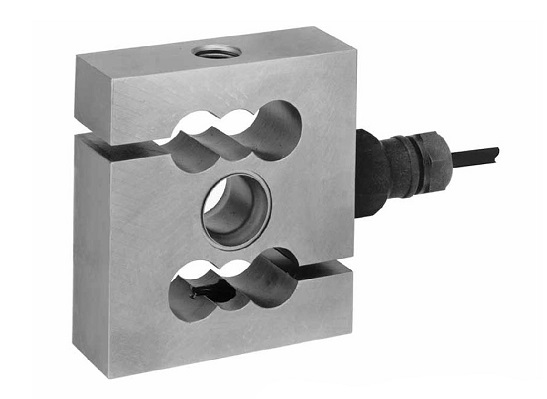

    Type UB1

    For application in harsh environments including crane scales and hanging scales, hopper and tankweighing systems,
    hybrid systems with lever work, belt weighers and other load carriers with multiple  load cells.

    • 1020  – 5099 kg range
    • accuracy class up to C3
    • protection class IP68

    Download Leaflet

     ↑ Back to top


    STAINLESS STEEL
    Product Name

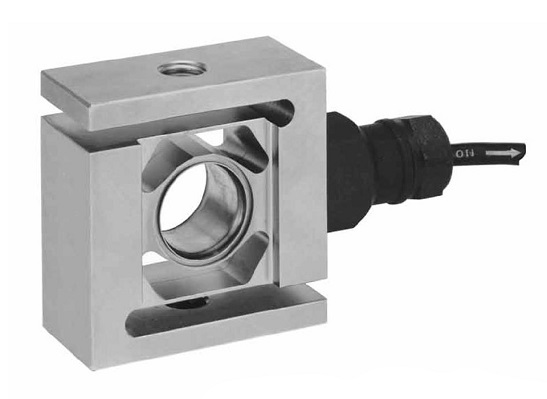

    Type UB6

    For application in harsh environments including crane scales and hanging scales, hopper and tank weighing systems,
    hybrid systems with lever work, belt weighers and other load carriers with multiple  load cells.

    • 102 – 510kg range
    • accuracy class up to C3
    • protection class IP68

    Download Leaflet

     ↑ Back to top


    STAINLESS STEEL
    Product Name

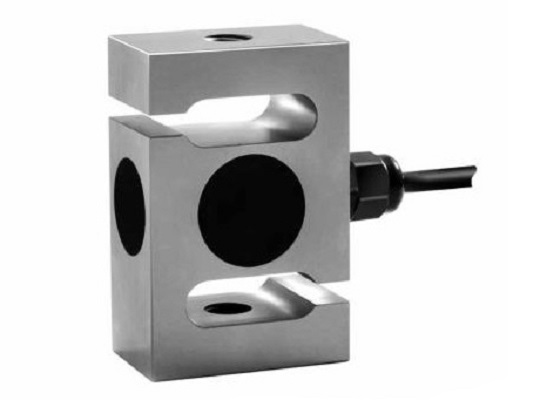

    Type ULB

    For application including crane scales and hanging scales, hopper and tank weighing systems,
    hybrid systems with lever work, belt weighers and other load carriers with multiple  load cells.

    • 100– 5000 kg range
    • accuracy class up to C3
    • protection class IP67

    Download Leaflet
