Hydraulically-Damped

  • Damped single point load cells or centrecells in aluminium, steel and stainless steel. These load cells are specially designed for use in weighing systems. They consist out of a single point load cell mounted between friction plates in an enclosure filled with a damping fluid. Additional to the single point characteristics this damping suppresses dynamic effects which facilitates by example the control of moving objects.


  • ALLOY STEEL
    Product Name

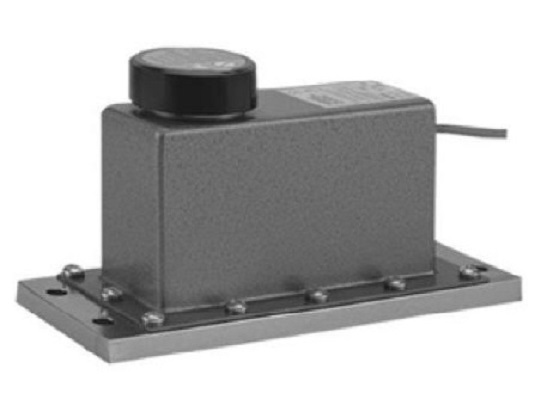

    Type 240

    Ideal for platforms up to 400 x 400 mm in various dynamic applications, such as filling, check weighing and grading.

    • 2 - 50 kg range
    • accuracy class up to C3
    • protection class IP66

    Download Leaflet


    ALUMINIUM
    Product Name

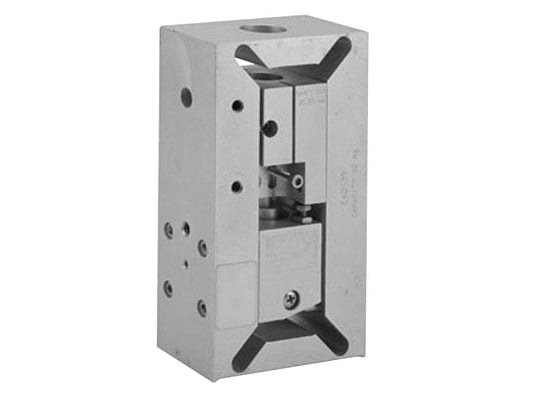

    Type 1410

    A single point load cell, especially designed for multihead rotating filling machines. The load cell possesses a unique compensation of centrifugal forces, is insensitive for side forces and has a, application adjustable, hydraulic damping.

    • 10 -30 kg range
    • accuracy class up to  G(tot 3000 d)


    Download Leaflet


    ALUMINIUM
    Product Name

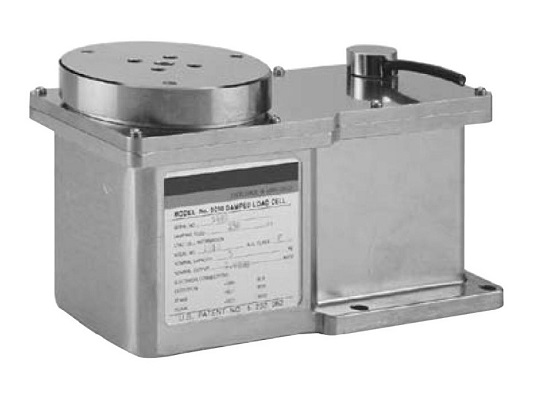

    Type 9010

    A single point load cell with a unique compensation for high dead loads, overloads and eccentric loads. Together with the hydraulic damping this load cell is the ideal solution for fast and dynamic processes including shock-loading applications

    • 3 kg - 90 kg range
    • accuracy class up to  G(uo to 3000 d)
    • protection class IP65

    Download Leaflet


    STAINLESS STEEL
    Product Name

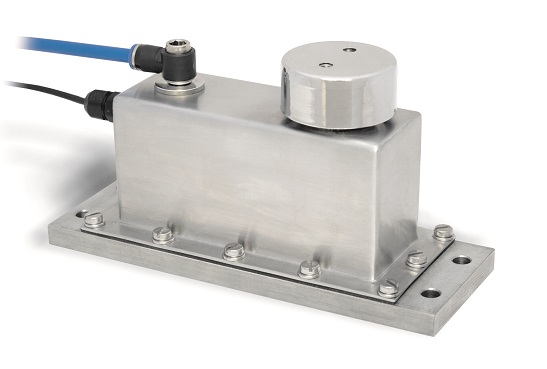

    Type 260

    Ideal for platforms up to 500 x 500 mm in various dynamic applications, such as filling, check weighing and grading.

    • 5 kg - 200kg range
    • accuracy class up to C4
    • protection class IP68

    Download Leaflet


    STAINLESS STEEL
    Product Name

    Type 240

    Ideal for platforms up to 400 x 400 mm in various dynamic applications, such as filling, check weighing and grading.

    • 2 - 50 kg range
    • accuracy class up to C3
    • protection class IP66



    Download Leaflet

     ↑ Back to top


    STAINLESS  STEEL
    Product Name

    Type 9010

    A single point load cell with a unique compensation for high dead loads, overloads and eccentric loads. Together with the hydraulic damping this load cell is the ideal solution for fast and dynamic processes including shock-loading applications

    • 3 kg - 90 kg range
    • accuracy class up to G(up to 3000 d)
    • protection class IP65

    Download Leaflet
