Double Ended Shear Beam

  • Double ended  shearbeam load cells in steel and stainless steel.
    A universal load cell for large industrial applications. The shear is measured in two locations, close to the neutral line of the load cell. This reduces the effects of transverse forces, torque however effects the result. The compact construction easies mounting.


  • ALLOY STEEL
    Product Name

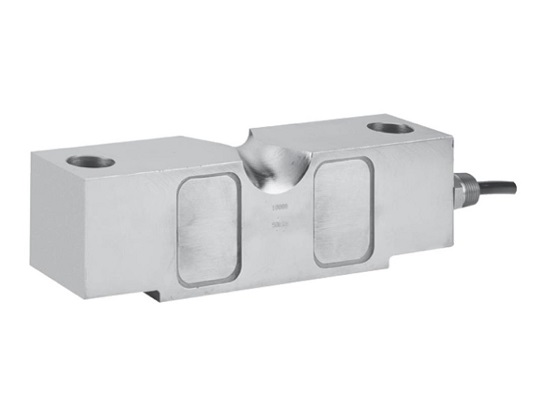

    Type 4158

    For tank and silo weighing, for weigh bridges and for heavy duty industry where installation space is confined.

    • 10 - 75 Klbs (4536 - 31752 kg) range
    • accuracy class  to NTEP 10000 IIL, comparable with C3
    • protection class IP67

    Download Leaflet


    ALLOY STEEL
    Product Name

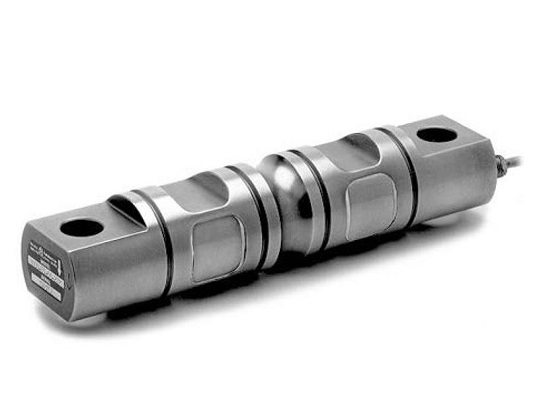

    Type 5103

    For tank and silo weighing, heavy duty weighbridges, and industrial applications where installation space is confined.

    • 2,3 - 113 t range
    • accuracy class  up to C3
    • protection class IP67

    Download Leaflet


    ALLOY STEEL
    Product Name

    Type 750a

    For tank and silo weighing, truck weigh-bridges, and for heavy duty industry where installation space is confined.

    • 7500 - 30000 kg range
    • accuracy class C4
    • protection class IP68

    Download Leaflet


    STAINLESS STEEL
    Product Name

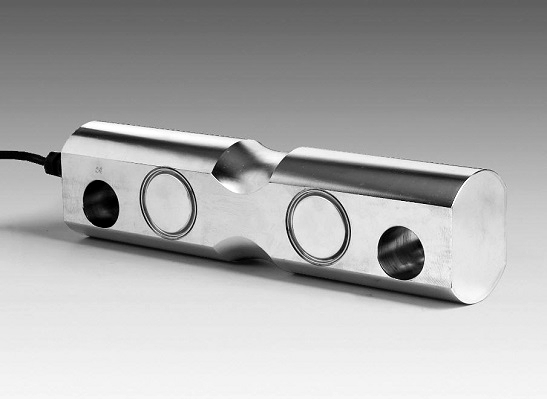

    Type 460

    For tank and silo weighing, truck weigh-bridges, and for heavy duty industry where installation space is confined.

    • 5 - 100 t range
    • accuracy class C3
    • protection class IP68

    Download Leaflet


    STAINLESS STEEL
    Product Name

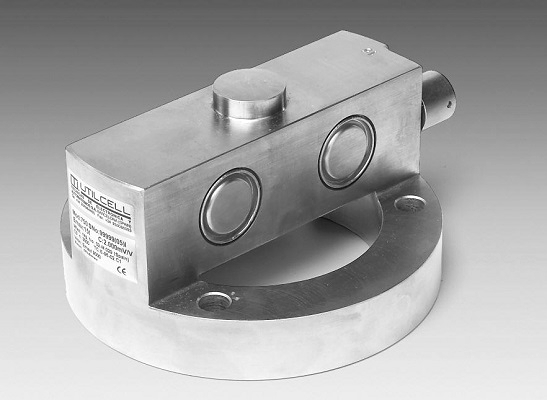

    Type 750i

    For tank and silo weighing, truck weigh-bridges, and for heavy duty industry where installation space is confined.

    • 7500 -30000 kg range
    • accuracy class C4
    • protection class IP68

    Download Leaflet
